Focus On Solving Lithium Battery Pack Management Technology, A Industry Leader Since 2015 - Huawen.

25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 1
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 2
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 3
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 4
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 5
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 6
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 1
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 2
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 3
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 4
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 5
25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 6

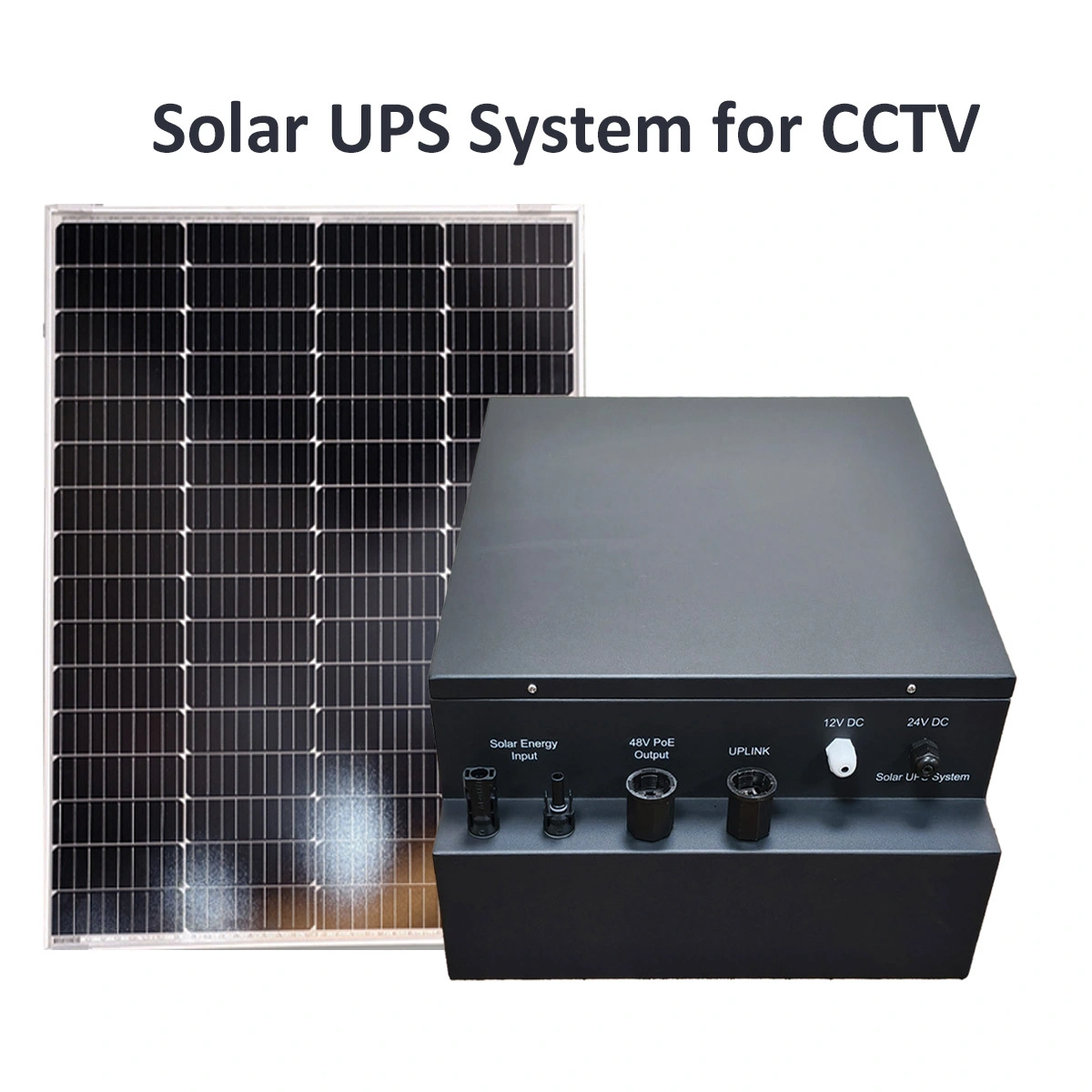

25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System

Charging: 29.2V/15A(Max) MC4 Connector

Port1&2: MC4 Positive & Negative electrode

Port3: 48V 2A Hi-POE-RJ45

Port4: Uplink-RJ45(10mbps/100mbps)

Port5: 12V DC

Port6: 24V DC

Solar charging and discharging controller: MPPT(With Bluetooth/APP)

Battery pack: LiFePO4-8S2P(56Ah-SQLFP)

Battery capacity: 25.6V 56Ah(1433.6Wh)

Battery cycle: 2000 times at 80% DOD

Battery size: 450*340*185mm

Battery weight: approx 21kg

Working temp: -20°C~60°C

    oops...!

    no product data.

    Go to homepage

    Product Parameters

    Solar Panel Description Battery Description
    Solar panel 36V 300W Charging 29.2V/15A(Max)MC4 Connector
    Cell type Mono Port1&2 MC4 Positive & negative electrode
    Panel size 1340*1130*30mm Port3 48V2A Hi-POE-RJ45
    Panel weight 15kg Port4 Uplink-RJ45(10mbs/100mbs)
    Connector Waterproof MC4 Port5 12VDC
    Cable 1000mm lenght Port6 24VDC
    Waterproof grade IP67 POE IEEE 802.3 BT/AT/AF
    Transformation efficiency ≥21% Battery pack LiFePO4-8S2P(56Ah-SQLFP)
    Working temperature -40℃~+85℃ Battery capacity 25.6V56Ah(1433.6Wh)
    Useful years With reasonable use, its lifespan can be as long as more than 25 years Battery cycle 2000 times at 80% DOD
    Bracket Embrace pole bracket Battery size 450*340*185mm
    Bracket weight Approx 15kg Battery weight Approx 21kg
    25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 7
    Solar energy storage
    Uninterruptible power supply
    25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 8
    Intelligent BMS
    Multiple safety protections
    25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 9
    Portable design
    Easy to install
    25.6V/56Ah 1.5KWh 48V POE Multi-Purpose Off-Grid Solar UPS System 10
    Smart MPPT
    Mobile phone can view data in real time
    详情页1 (76)

    What is an Off-Grid Solar UPS System?

    Solar (Uninterruptible Power Supply) is referred to as Solar UPS, and off-grid is a solar UPS system that operates independently of the main grid.

    It consists of solar panels, LiFePO4 battery packs, and MPPT controllers.

    What are the uses of off-grid solar UPS systems?

    It is mainly used in remote areas where the cost of connecting to the power grid is high or difficult, and on small islands where power outages are common. The off-grid solar UPS system is mainly suitable for AP/IP Iphone/Antenna/CCTV

    详情页3 (70)
    详情页4 (67)

    Why Do We Need Off-Grid Solar UPS Systems?

    Remote power supply: When there is no power grid coverage in remote areas, it can provide stable electricity to meet the basic living needs of residents.

    Emergency power supply: When natural disasters or emergencies cause the power grid to be interrupted, it can be used as an emergency backup power supply to ensure the operation of key equipment such as medical and communications.

    Environmental protection: Solar energy is clean and renewable, and using it to generate electricity can reduce dependence on fossil fuels and reduce carbon emissions.

    Economical and practical: Although the initial investment is high, the long-term operating cost is low and maintenance is simple.

    How does a solar UPS work?

    Energy collection: Solar panels convert sunlight into electricity.

    Energy storage: Electricity is stored in a built-in LiFePO4 battery pack.

    MPPT intelligent control: The intelligent controller monitors battery power, solar input and load demand, and automatically adjusts the power supply strategy to ensure stable and efficient power supply.

    Off-grid operation: It does not rely on the power grid and operates autonomously, suitable for areas with high cost of connecting to the grid and remote areas without power grid.


    详情页2 (67)
    产品参数表_画板 1 (2)
    详情页2 (59)
    详情页6 (28)
    详情页3 (59)
    主图5 (70)
    详情页5 (51)

    Questions About Product

    Our in-house designers and engineers have produced countless great designs for customers from different industries

    1
    What kind of cooperation methods can you provide?
    We can provide OEM/ODM customization services and provide customers with brand new labeling brands for sales. Of course, we also welcome partners from various countries and regions to sign agency cooperation agreements with us.
    2
    Q: Can I Have A Sample Order?
    A: Yes, we welcome sample order to test and check quality.
    3
    Q: Do you have a MOQ limit?
    A: Yes, our MOQ for bulk orders is 500 pcs. The MOQ for customized appearance is 2,000 pcs.
    4
    Q: Can I get a lower price if I order a large quantity of products?
    A: Yes, the price of the product is cheaper if you order more quantities.
    5
    Q: Can I get the pre-production sample ?
    Yes, we will ask for your requirements and provide solutions before production. We will produce samples for you upon your approval.
    6
    Q: How long is delivery time ?
    A: Normally 15-20 working days after receiving your payment.
    7
    Q: How about warranty?
    A: 1 year warranty.
    We are looking forward to get more cooperation
    Our team provides excellent customer service and support
      24*7 fast response
    ●  Provides technical assistance
    ●  After-sales support
    ●  Delivery time for sample orders is 15-25 days
    ●  Delivery time for bulk orders is 25-30 days
