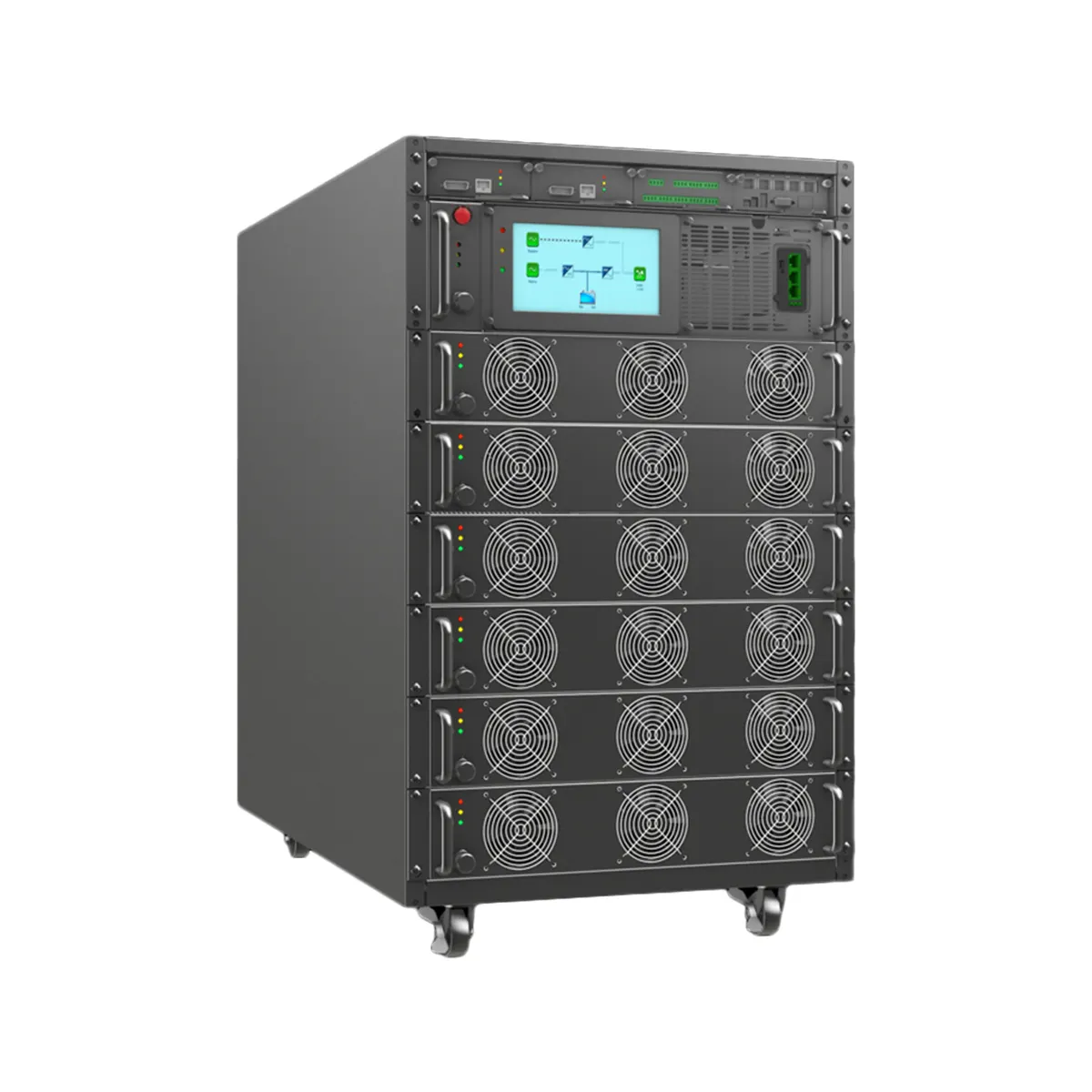

HP33SM Subrack Modular UPS Series (10kVA-150kVA) TECHNICAL SPECIFAICATION |
||||
| MODULE MODEL | HP33SM-RM-10 | |||
| CABINET MODEL | HP33SM-20 | HP33SM-40 | HP33SM-60 | |
| Cabinet capacity | 10kVA～20kVA | 10kVA～40kVA | 10kVA～60kVA | |
| Module capacity | 10kVA | |||
| Max. number | 2 | 4 | 6 | |
| MODULE MODEL | HP33SM-RM-15 | |||
| CABINET MODEL | HP33SM-30 | HP33SM-60 | HP33SM-90 | |
| Cabinet capacity | 15kVA～30kVA | 15kVA～60kVA | 15kVA～90kVA | |
| Module capacity | 15kVA | |||
| Max. number | 2 | 4 | 6 | |
| MODULE MODEL | HP33SM-RM-20 | |||
| CABINET MODEL | HP33SM-40 | HP33SM-80 | HP33SM-120 | |
| Cabinet capacity | 20kVA～40kVA | 20kVA～80kVA | 20kVA～120kVA | |
| Module capacity | 20kVA | |||
| Max. number | 2 | 4 | 6 | |
| MODULE MODEL | HP33SM-RM-25 | |||
| CABINET MODEL | HP33SM-50 | HP33SM-100 | HP33SM-150 | |
| Cabinet capacity | 25kVA～50kVA | 25kVA～100kVA | 25kVA～150kVA | |
| Module capacity | 25kVA | |||
| Max. number | 2 | 4 | 6 | |
| MODULE MODEL | HP33SM-RM-30 | |||
| CABINET MODEL | HP33SM-60 | HP33SM-120 | HP33SM-180 | |
| Cabinet capacity | 30kVA～60kVA | 30kVA～120kVA | 30kVA～180kVA | |
| Module capacity | 30kVA | |||
| Max. number | 2 | 4 | 6 | |
| INPUT | ||||
| Voltage | 380/400/415Vac, (3Ph+N+PE) | |||
| Operating voltage range | 138～305Vac for 40% load; 305～485Vac for 100% load | |||
| Operating frequency range | 40Hz～70Hz | |||
| Power factor | ≥0.99 | |||
| Harmonic distortion (THDi) | ≤3% (100% Linear load) | |||
| Bypass voltage range |
Max. voltage: 220V: ＋25% (Optional ＋10%, ＋15%, ＋20%) 230V: ＋20% (Optional ＋10%, ＋15%) 240V: ＋15% (Optional ＋10%) Min. voltage: －45% (Optional －10%, －15% －20%, －30%) |
|||
| Bypass frequency range | Frequency protection range: ±10% | |||
| Power walk in | Support | |||
| Generator input | Support | |||
| OUTPUT | ||||
| Rated voltage | 380/400/415Vac, (3Ph＋N＋PE) | |||
| Power factor | 1.0 | |||
| Voltage regulation | ±1% | |||
| Output frequency | Line mode | Synchronize with input, when the input frequency ＞±10%（±1%/±2%/±4%/±5% optional), output 50/60 (±0.1Hz) | ||
| Bat. mode | (50/60±0.1%)Hz | |||
| Crest factor | 3:1 | |||
| Harmonic distortion (THDv) | ≤1% with linear load; ≤3% with nonlinear load | |||
| Efficiency | Up to 95.8% | |||
| BATTERY | ||||
| Battery voltage | ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs, 36pcs default, 36~50pcs output power factor 1.0, 32~34pcs output power factor 0.9, 30pcs output power factor 0.8) | |||
| Power module charge current | 18A (Max.) | |||
| SYSTEM FEATURES | ||||
| Transfer time | Utility to Battery: 0ms; Utility to Bypass: 0ms | |||
| Overload | Inverter mode | ≤110% 60min, ≤125% 10min, ≤150% 1min, ＞150% 1.2s shut down inverter | ||
| Bypass mode | 30℃: 135% for long term; 40℃: 125% for long term; >1000%, 100ms | |||
| Overheat | Line Mode: Switch to Bypass; Backup Mode: Shut down UPS immediately | |||
| Low battery voltage | Alarm and Switch off | |||
| Self-diagnostics | Upon Power On and Software Control | |||
| Backfeed protection | Support | |||
| EPO (Optional) | Shut down UPS immediately (Turn to bypass optional) | |||
| Battery | Advanced Battery Management | |||
| Noise suppression | Complies with EN62040-3 | |||
| Audible & visual alarms | Line Failure, Battery Low, Overload, System Fault | |||
| Status LED & LCD display | Line Mode, Bypass Mode, Battery Low, Battery Fault, Overload & UPS Fault | |||
| Reading on the LCD display | Input, Output, Battery, Command, Setting, Maintenance | |||
|
Communication interface (Optional) |
RS232, RS485, Parallel, LBS, Dry contact port, Relay card, SNMP card , Battery temperature sensor |
|||
| ENVIRONMENTAL | ||||
| Operating temperature | 0℃～40℃ | |||
| Storage temperature | -25℃～55℃ | |||
| Humidity range | 0～95% (Non condensing) | |||
| Altitude | ＜1000m, derating required when ＞1000m | |||
| Noise level | ＜58dB | ＜60dB | ＜62dB | |
| PHYSICAL | ||||
| Dimension W×D×H | UPS cabinet | 485×850×353mm (8U) | 485×850×575mm (13U) | 485×850×752mm (17U) |
| Power module | 440×620×86mm (2U) | |||
| Net weight | UPS cabinet | 69kg | 79kg | 98kg |
| Power module | 10kVA: 19kg; 15~30kVA: 21kg | |||
| STANDARDS | ||||
| Safety | IEC/EN 62040-1, IEC/EN 62477-1 | |||
| EMC | IEC/EN 62040-2 (IEC 61000-2-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11) | |||
