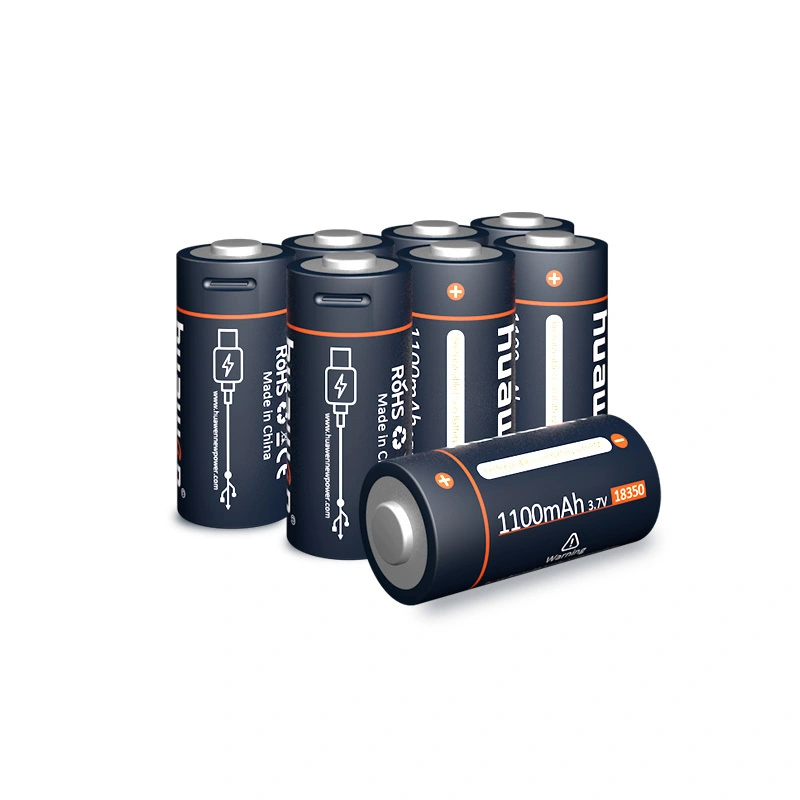

Huawen Thor 1835037C 3.7V 1100mAh 18350 USB-C Battery for Portable Fan/Night light/Electronic scale

Model: Thor 1835037C

Nominal voltage: 3.7V

Nominal capacity: 1100mAh(4070mWh)

Connector: USB-C

Input:5V2A

Output:2.75V~4.2V10A(Max)

Size: 18.5*40mm

Weight: 27g

Replacement Model:

Portable fans, Power Tools, Intercom, etc.

Customized services:

MOQ 1000pcs

√ Battery capacity

√ Battery appearance

√ Packaging method

Inquiry

Write a Review

Product Parameters


Model	Thor 1835037C	Size	18.5*40mm
Nominal Voltage	3.7V	Nominal Capactiy	1100mAh (4070mWh)
Charging	5V2A(USB-C)	Discharge	2.75V~4.2V10A(Max)
Battery Cell	NCM A-Grade	Customized Sercives	Apperance Film
Protection	Smart BMS	Cycle Life	1000 times
Net Weight	27g	Package	2pcs or 4pcs/plastic box
Charging Temperature Range	-10℃~+45℃（32℉~113℉）	Discharging Temperature Range	-20℃~+60℃（-4℉~140℉）

What is the difference between Thor 1835037C battery and regular 18350 cell?

1.Appearance

Size:The size of the Thor 1835037C lithium battery is similar to that of the regular 18350 battery. The regular 18350 has a diameter of 18mm and a height of 35mm; the Thor 1835037C has a diameter of 18.5mm and a height of 35-40mm.

Output port:Huawen has more than 8 years of experience in the research and development of lithium batteries and can provide customized solutions for conventional positive and negative output and positive and negative battery in the same direction.

USB-C:Thor 1835037C uses USB-C 5V charging. Users can use a mobile phone charger to charge the battery repeatedly, reducing resource waste and advocating the practice of environmental protection concepts.

LED Indicator light:Thor 1835037C has an LED working indicator light on the positive pole. The battery shows different colors of light in different working conditions:Charging - red,full - green.

2.Environmental effects

Green lithium battery, environmental protection support

Zero pollution: Thor 1835037C lithium battery does not contain toxic substances such as mercury, cadmium, and lead. It is environmentally friendly.

No memory effect: Thor 1835037C lithium battery does not need to be discharged before charging, which is convenient to use.

3.economic benefits

Reduce costs and improve quality

Compared with the conventional 18350 batteries on the market, the Thor 1835037C lithium battery has a self-developed BMS (battery management system), a protection circuit and optimized charging and discharging functions, which allows the number of cycles to reach more than 1,000 times, which is twice that of conventional batteries and 1,000 times that of dry batteries!

Multiple cycles of charging and use can greatly reduce the cost and procurement time of users for 18350 batteries.

4.battery protection

OVP/UVP/OCP/OCC/OTP/TC/CVCC

In order to prevent battery short circuit the positive and negative poles of the Thor 1835037C rechargeable lithium battery are separated,and it is equipped with a BMS(battery managment system)to better manage the use of the battery and extend the battery life.

Thor 1835037C rechargeable lithium battery adopts a full inspection secondary explosion-proof design to prevent battery leakage/burning/short circuit,etc.

Product Advantages

Huawen will provide the highest-end products and the best services.

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 12

Multiple Protection

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 13

Power Stability

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 14

Endurance

USB-C

Prduct Display

Product Detail Display

Thor 1835037C uses the popular USB-C port for charging. We also provide charging station models for you to choose from. They can provide the same positive and negative output functions as traditional batteries. At the same time, we can also provide customers with customized battery appearance and outer packaging services. Welcome to consult with us.

Product application

Thor 1835037C batteries are often used in devices that require higher voltage and energy density, such as some cordless phone, night light, electronic scale,etc.

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 17

Cordless Phone

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 18

Night Light

Custom 18350 3.7V 1100mAh USB-C Lithium Battery with BMS Solution 19

Electronic Scale

Questions About Product

Our in-house designers and engineers have produced countless great designs for customers from different industries

What kind of cooperation methods can you provide?

We can provide OEM/ODM customization services and provide customers with brand new labeling brands for sales. Of course, we also welcome partners from various countries and regions to sign agency cooperation agreements with us.

Q: Can I Have A Sample Order?

A: Yes, we welcome sample order to test and check quality.

Q: Do you have a MOQ limit?

A: Yes, our MOQ for bulk orders is 500 pcs. The MOQ for customized appearance is 2,000 pcs.

Q: Can I get a lower price if I order a large quantity of products?

A: Yes, the price of the product is cheaper if you order more quantities.

Q: Can I get the pre-production sample ?

Yes, we will ask for your requirements and provide solutions before production. We will produce samples for you upon your approval.

Q: How long is delivery time ?

A: Normally 15-20 working days after receiving your payment.

Q: How about warranty?

A: 1 year warranty.
