1S12P/2S6P/3S4P/4S3P/6S2P 3.7V NMC18500 Li-ion Battery Pack Solution Factory

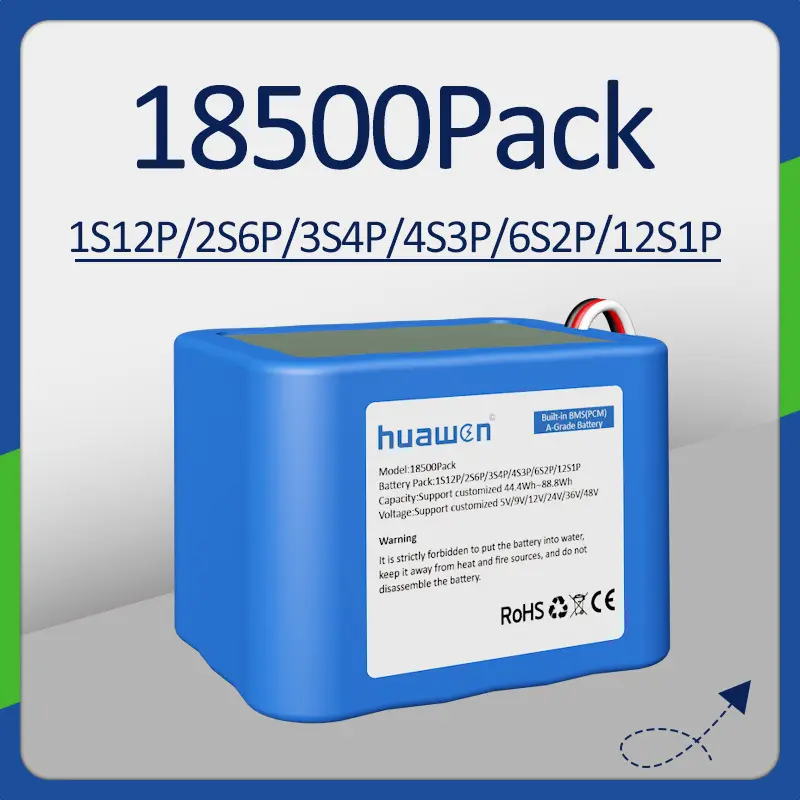

Model: 18500 12Pack Series

Battery cell type: NMC

Battery cell capacity: 1000mAh/1200mAh/1400mAh/1600mAh/1800mAh/2000mAh

Custom connection method: 1S12P/2S6P/3S4P/4S3P/6S2P

Custom capacity: 44.4Wh-88.8Wh

Custom input: 4.2V/5V/8.4V/12.6V/16.8V/25.2V

Custom output: Wide Range Voltage / Constant Voltage

Weight: approx 490g

Cycle: more than 300 times / 500 times at 80% DOD

Customized services:

MOQ 500 sets

Battery capacity/voltage/current

Brand / LOGO

Packaging method

    oops...!

    no product data.

    Go to homepage

    18500 Series High Performance Battery Pack

    12-battery series-parallel combination (1S12P/2S6P/3S4P/4S3P/6S2P/12S1P)

    1S12P/2S6P/3S4P/4S3P/6S2P 3.7V NMC18500 Li-ion Battery Pack Solution Factory 7
    Corporate News
    Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are
    1S12P/2S6P/3S4P/4S3P/6S2P 3.7V NMC18500 Li-ion Battery Pack Solution Factory 8
    Corporate News
    Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are

    18500 battery pack features

    One standard size, multiple capacity options

    Including 1000mAh/1200mAh/1400mAh/1600mAh/1800mAh/2000mAh, different electrical modules can use a single battery cell.

    Various output currents and voltages

    Charging limit voltages from 4.2V to 4.35V and a maximum discharge current of 20C per cell make it suitable for many special applications.

    Wide operating temperature range

    From -20°C to 65°C, it can meet almost all civil electrical applications.

    Flexible battery pack shape

    The battery pack can be customized into square, round, triangular, tubular or other irregular shapes.

    Economic and environmental protection

    Fully compliant with economic and environmental standards.

    Light weight, maintenance-free, small size, high energy

    Compared with lead-acid batteries, NiMH batteries, and NiCd rechargeable batteries, lithium-ion battery packs can save a lot of size and weight.

    What Specifications Can Huawen Make?

    We can provide all kinds of specifications,there is a part of us.

    Model 18500Pack
    Nominal voltage 3.7V 7.4V 11.1V 22.2V 37V
    Nominal capacity 1000mAh/1200mAh/1400mAh/1600mAh/1800mAh/2000mAh
    Battery pack 1S1P/2P/3P/4P/5P/...... 2S1P/2P/3P/4P/5P/...... 3S1P/2P/3P/4P/5P/..... 6S1P/2P/3P/4P/5P/..... 10S1P/2P/3P/4P/5P/.....
    Input voltage 4.2V 8.4V 12.6V 25.2V 42V
    Input current 1C 1C 1C 1C 1C
    Output voltage(regular ver.) 2.75V~4.2V(WRV) 5.5V~8.4V(WRV) 8.25V~12.6V(WRV) 16.5V~25.2V(WRV) 27.5V~42V(WRV)
    Output voltage(custom ver.) 5V/9V(CV) 5V/9V/12V(CV) 5V/9V/12V/24V(CV) 5V/9V/12V/24V/36V/48V(CV) 5V/9V/12V/24V/36V/48V(CV)
    Continuous output current 1C~10C
    Peak output current 1C~20C
    PCM/BMS
    OVP/UVP/OCP/OCC/OTP/TV/CVCC, etc.
    Connector
    ZH1.5mm/PH2.0mm/SH1.0mm/VH3.96/SM2.54/XH2.54, etc.
    Battery type NMC
    Working temperature
    Charge: 0~60℃    Discharge: -20~65 ℃
    Cycle life
    Around 300 times / 500 times
    Warranty
    12 Months
    Application

    Toy (RC/Drone/Educational Robot/Water Gun, etc.)

    Consumer electronics (electric toothbrushes, Bluetooth speakers, POS machines, Electronic cigarettes, etc.).

    Lamps (flashlights, LED flashlights, laser flashlights, engineering lighting lamps, mining lamps, emergency lights, etc.).



    We stock a range of standard Li-ion battery packs for a wide range of applications in the consumer and industrial markets. All of these lithium batteries have a PCM/BMS (Protection Control Module) to ensure safety.

    If you require a quote for a Li-ion battery pack, or you cannot find the specific Li-ion battery pack you need on our website, please contact us.

    icon2 (2)

    Nominal voltage

    3.7V

    1S2P

    2-1 (2)

    1S3P

    3-1 (2)

    1S4P

    4-1 (2)

    Nominal voltage

    7.4V

    2S3P

    6-1 (2)

    2S4P

    8-1 (2)

    2S5P

    10-1 (2)

    Nominal voltage

    11.1V

    3S2P

    6-1 (2)

    3S3P

    9-1 (2)

    3S4P

    12-1 (2)
    详情页1-12 (2)
    详情页5 (25)
    详情页4_画板 1 (4)
    详情页6 (14)
    icon2 (2)
    详情页7 (14)

    Questions About Product

    Our in-house designers and engineers have produced countless great designs for customers from different industries

    1
    What kind of cooperation methods can you provide?
    We can provide OEM/ODM customization services and provide customers with brand new labeling brands for sales. Of course, we also welcome partners from various countries and regions to sign agency cooperation agreements with us.
    2
    Q: Can I Have A Sample Order?
    A: Yes, we welcome sample order to test and check quality.
    3
    Q: Do you have a MOQ limit?
    A: Yes, our MOQ for bulk orders is 500 pcs. The MOQ for customized appearance is 2,000 pcs.
    4
    Q: Can I get a lower price if I order a large quantity of products?
    A: Yes, the price of the product is cheaper if you order more quantities.
    5
    Q: Can I get the pre-production sample ?
    Yes, we will ask for your requirements and provide solutions before production. We will produce samples for you upon your approval.
    6
    Q: How long is delivery time ?
    A: Normally 15-20 working days after receiving your payment.
    7
    Q: How about warranty?
    A: 1 year warranty.
