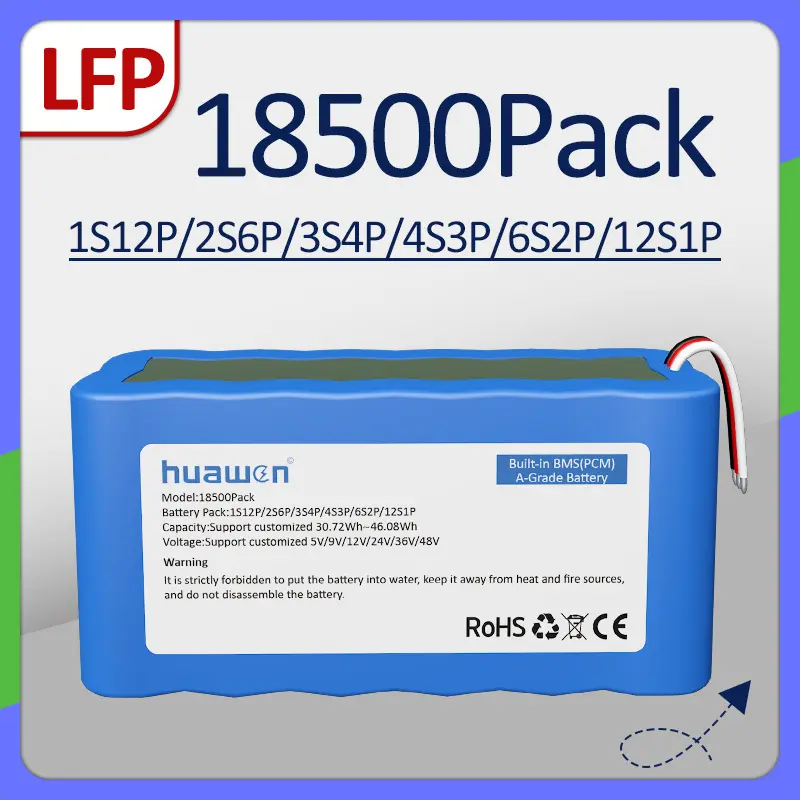

Custom 1S12P/2S6P/3S4P/4S3P/6S2P/12S1P 3.2V 18500 LFP LiFePO4 Battery Pack Solution

Model: 18500 12Pack LFP Series

Battery cell type: LiFePO4

Battery cell capacity: 800mAh/1000mAh/1200mAh

Custom connection method: 1S12P/2S6P/3S4P/4S3P/6S2P/12S1P

Custom capacity: 30.72Wh~46.08Wh

Custom input: 3.65V/7.3V

Custom output: Wide Range Voltage / Constant Voltage

Weight: approx 480g

Cycle: more than 1000 times at 80% DOD

Customized services:

MOQ 500 sets

√ Battery capacity/voltage/current

√ Brand / LOGO

√ Packaging method

    oops...!

    no product data.

    Go to homepage

    18500 Series High Performance Battery Pack

    12-battery series-parallel combination (1S12P/2S6P/3S4P/4S3P/6S2P/12S1P)

    Custom 1S12P/2S6P/3S4P/4S3P/6S2P/12S1P 3.2V 18500 LFP LiFePO4 Battery Pack Solution 7
    Corporate News
    Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are
    Custom 1S12P/2S6P/3S4P/4S3P/6S2P/12S1P 3.2V 18500 LFP LiFePO4 Battery Pack Solution 8
    Corporate News
    Here is the latest news about our corporate, our people, or our activities. It is a better way to know who we are

    18500 battery pack features

    One standard size, multiple capacity options

    Including 800mAh/1000mAh/1200mAh, different electrical modules can use a single battery cell.

    Various output currents and voltages

    The charging limit voltage is 3.65V±0.02V, the peak discharge of each battery cell is 5C/10C, and the continuous discharge is 1C/3C/5C, making it suitable for the field of energy storage/power tools.

    Wide operating temperature range

    Low temperature battery cell version is suitable for -40℃~+65℃

    Conventional battery cell version is suitable for -10℃~+45℃

    Flexible battery pack shape

    The battery pack can be customized into square, round, triangular, tubular or other irregular shapes to fit different equipment shapes and structures.

    Economic and environmental protection

    Fully compliant with economic and environmental standards.

    Light weight, maintenance-free, small size, high energy

    Compared with lead-acid batteries, nickel-metal hydride batteries, and nickel-cadmium rechargeable batteries, LiFePO4 batteries have longer life and more stable performance.

    What Specifications Can Huawen Make?

    We can provide all kinds of specifications,there is a part of us.

    Model 18500Pack

    Battery type LiFePO4 (LFP/IFR)
    Nominal voltage 3.2V 6.4V 12.8V 25.6V 38.4V 51.2V
    Nominal capacity 800mAh/1000mAh/1200mAh
    Battery pack 1S1P/2P/3P/4P/5P/...... 2S1P/2P/3P/4P/5P/...... 4S1P/2P/3P/4P/5P/..... 8S1P/2P/3P/4P/5P/..... 12S1P/2P/3P/4P/5P/..... 16S1P/2P/3P/4P/5P/.....
    Input voltage 3.65V 7.3V 14.6V 29.2V 43.8V 58.4V
    Input current 1C 1C 1C 1C 1C 1C
    Output voltage(regular ver.) 2.5V~3.65V(WRV) 5V~7.3V(WRV) 10V~14.6V(WRV) 20V~29.2V(WRV) 30V~43.8V(WRV) 40V~58.4V(WRV)
    Output voltage(custom ver.) 5V/9V(CV) 5V/9V/12V(CV) 5V/9V/12V/24V(CV) 5V/9V/12V/24V/36V/48V(CV) 5V/9V/12V/24V/36V/48V(CV) 5V/9V/12V/24V/36V/48V(CV)
    Continuous output current 1C/3C/5C
    Peak output current 5C/10C
    PCM/BMS
    OVP/UVP/OCP/OCC/OTP/TV/CVCC, etc.
    Connector
    ZH1.5mm/PH2.0mm/SH1.0mm/VH3.96/SM2.54/XH2.54, etc.
    Working temperature
    Charge: 0~60℃    Discharge: -20~65 ℃
    Cycle life
    More than 1000 times at 80% DOD (@25℃/1C)
    Warranty
    12 Months
    Application

    Energy storage (Mini UPS/small photovoltaic energy storage system/Solar Fan, ect.)

    Consumer electronics (electric toothbrushes, power bank, cordless telephone, electronic cigarettes, etc.)

    Lamps (flashlights, LED flashlights, laser flashlights, engineering lighting lamps, mining lamps, emergency lights, solar street lights, etc.)



    We stock a range of standard Li-ion battery packs for a wide range of applications in the consumer and industrial markets. All of these lithium batteries have a PCM/BMS (Protection Control Module) to ensure safety.

    If you require a quote for a Li-ion battery pack, or you cannot find the specific Li-ion battery pack you need on our website, please contact us.

    icon2 (2)

    Nominal voltage

    3.2V

    1S2P

    1S2P

    1S4P

    1S4P

    1S8P

    1S8P

    Nominal voltage

    6.4V

    2S1P

    2S1P

    2S6P

    2S6P

    2S8P

    2S8P

    Nominal voltage

    12.8V

    4S2P

    4S2P

    4S3P

    4S3P

    4S4P

    4S4P
    详情页4-12
    详情页5 (26)
    详情页4_画板 1 (6)
    详情页6 (14)
    icon2 (2)
    详情页7 (15)

    Questions About Product

    Our in-house designers and engineers have produced countless great designs for customers from different industries

    1
    What kind of cooperation methods can you provide?
    We can provide OEM/ODM customization services and provide customers with brand new labeling brands for sales. Of course, we also welcome partners from various countries and regions to sign agency cooperation agreements with us.
    2
    Q: Can I Have A Sample Order?
    A: Yes, we welcome sample order to test and check quality.
    3
    Q: Do you have a MOQ limit?
    A: Yes, our MOQ for bulk orders is 500 pcs. The MOQ for customized appearance is 2,000 pcs.
    4
    Q: Can I get a lower price if I order a large quantity of products?
    A: Yes, the price of the product is cheaper if you order more quantities.
    5
    Q: Can I get the pre-production sample ?
    Yes, we will ask for your requirements and provide solutions before production. We will produce samples for you upon your approval.
    6
    Q: How long is delivery time ?
    A: Normally 15-20 working days after receiving your payment.
    7
    Q: How about warranty?
    A: 1 year warranty.
