High Voltage Power Supply by Huawen
Product details of the high voltage power supply
Product Introduction
While manufacturing Huawen high voltage power supply, only top-grade materials are adopted in the production. Except for complete specifications, our high voltage power supply is rich in color. Dongguan Huawen New Power Co., Ltd. acts swiftly and flexibly.
|

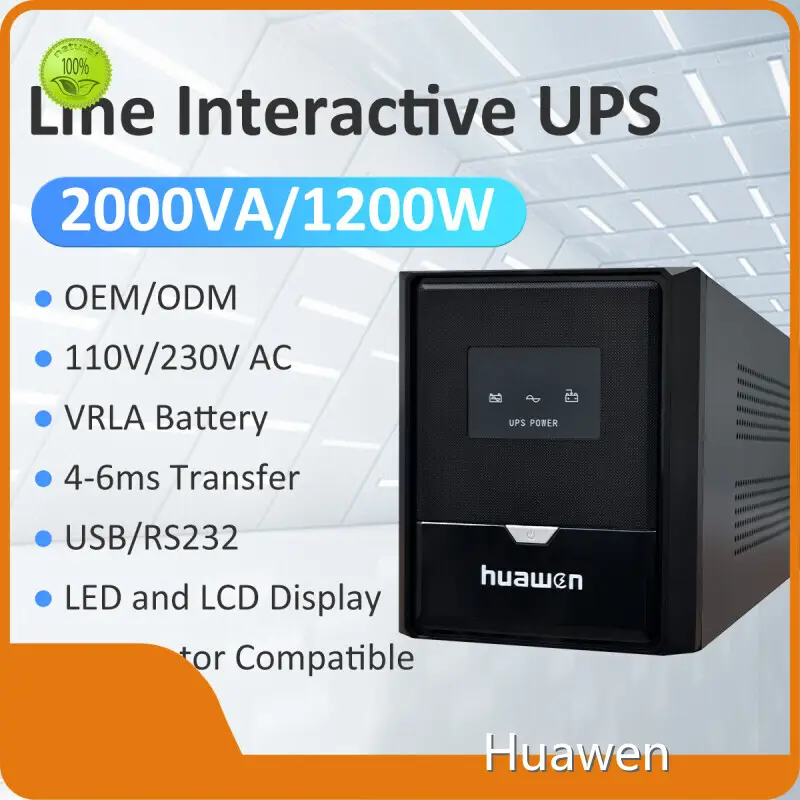

HK Series LINE INTERACTIVE UPS (500VA-3000VA) TECHNICAL SPECIFAICATION |
|||||||||
| MODEL | HK-500 | HK-650 | HK-800 | HK-1000 | HK-1500 | HK-2000 | HK-2000B | HK-3000 | |
| Capacity | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | 2000VA/1200W | 3000VA/1800W | |
| INPUT | |||||||||
| Voltage | 110V/120 VAC or 220V/230V/240 VAC | ||||||||
| Voltage range | 81-145VAC or 145-275VAC | ||||||||
| Frequency | 60/50 Hz (Auto sensing) | ||||||||
| OUTPUT | |||||||||
| Voltage | 110V/120 VAC or 220V/230V/240 VAC | ||||||||
| Voltage range | ±10% | ||||||||
| Frequency rang (bat. mode) | 60/50±1 Hz | ||||||||
| Transfer time | 4-6ms | ||||||||
| Waveform(bat. mode) | Simulated sine wave | ||||||||
| BATTERY | |||||||||
| Battery model & Quantity | 12V/4.5Ah×1 | 12V/7.0Ah×1 | 12V/9.0Ah×1 | 12V/7.0Ah×2 | 12V/9.0Ah×2 | 12V/9.0Ah×2 | 12V/7.0Ah×4 | 12V/9.0Ah×4 | |
| Charge time | 8 hours recover to 90% capacity | ||||||||
| PROTECTION | |||||||||
| Full protection | Discharge, Short circuit and overload protection | ||||||||
| INDICATORS | |||||||||
| LCD display | AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload and low battery | ||||||||
| Line mode | Green lighting | ||||||||
| Battery mode | Red lighting | ||||||||
| Battery charge mode | Yellow lighting | ||||||||
| ALARM | |||||||||
| Battery mode | Sounding every 4 seconds | ||||||||
| Low battery | Sounding every seconds | ||||||||
| Overload | Sounding every seconds | ||||||||
| Fault | Continuously sounding | ||||||||
| INTERFACE | |||||||||
| USB/RS232 Port (optional) | Support Windows XP/Vista, windows 7/8, Linux, Unix, and MAC | ||||||||
| ENVIRONMENT | |||||||||
| Humidity | 0-90% RH @ 0-40℃ (Non-condensing) | ||||||||
| Noise level | ＜40 dB | ||||||||
| Dimension(mm) | 280*90*140 | 320*90*140 | 330*100*150 | 365*140*165 | 365*140*165 | 365*140*165 | 395*145*210 | 395*145*210 | |
| N.W. (kg) | 4.0 | 5.2 | 5.7 | 10 | 11.9 | 12.6 | 17 | 21 | |
FAQ
Company Advantage
• Established in Huawen runs the standardized production after years of development and constructs comprehensive quality control system. We are committed to providing high-quality products for consumers.
• Apart from high-level production talents, our company employs a number of industry-leading experts to guide our daily production management for the products. It provides a strong guarantee for the quality of our products.
• Huawen's Mini UPS,Battery Pack,USB-C Rechargeable Battery are supplied throughout the country. Some products are exported to some countries and regions in Europe, America, Africa and Southeast Asia.
Customers could purchase Huawen's quality electric equipment at factory price. You can enjoy on-site installation and repair service provided by our professional technicians. What are you waiting for? Just contact us to place orders as soon as possible.
Dongguan Huawen New Power Co., Ltd. is a professional lithium batteries manufacturer integrating R&D, production and sales. The company was established in 2015 and is located in Dongguan City, GUA.
