Product details of the high voltage power supply
Product Introduction
The design concept of Huawen high voltage power supply is based on modern green style. Non-stop work for our high voltage power supply is its big strength. high voltage power supply are produced with its best performance.
|

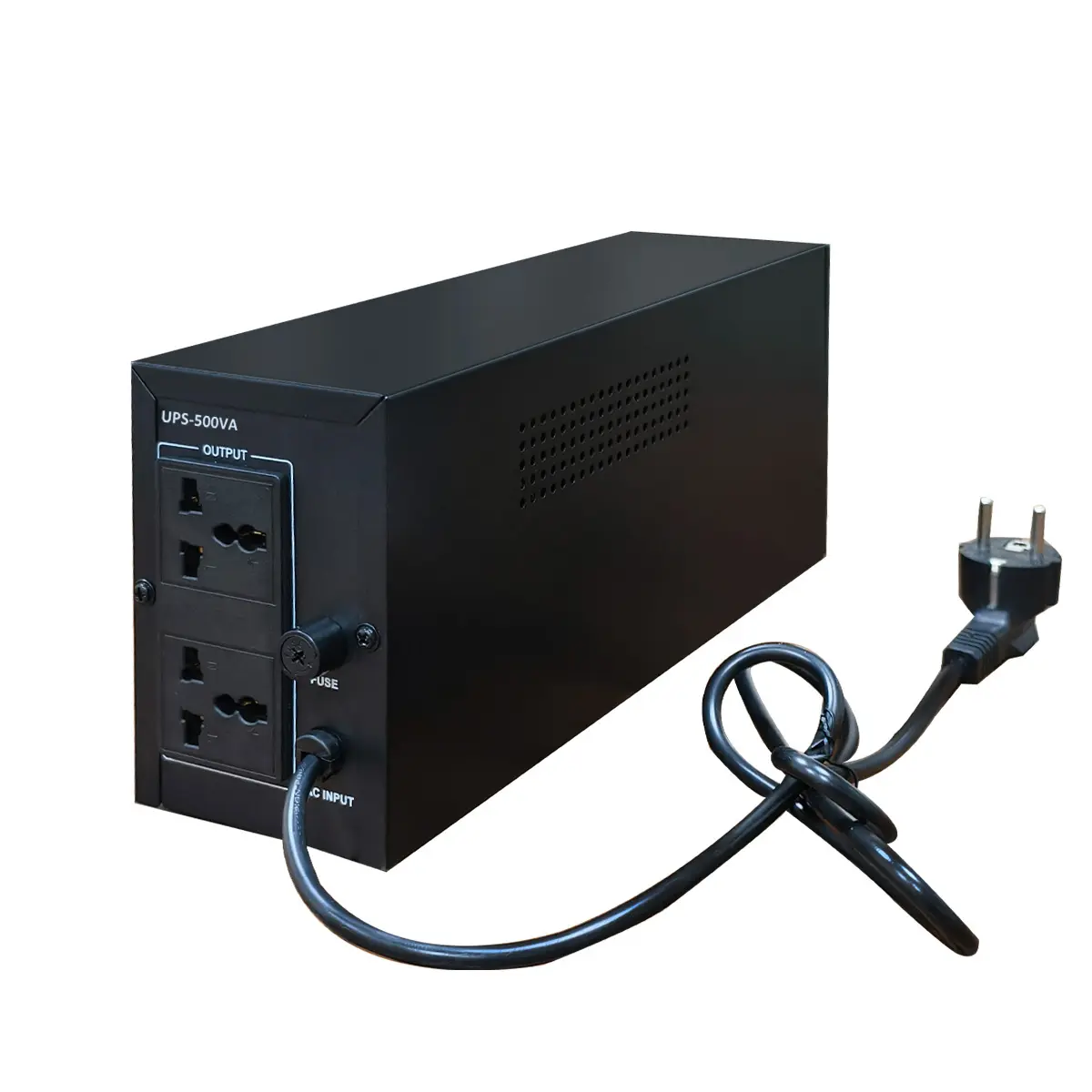

HK Series LINE INTERACTIVE UPS (500VA-3000VA) TECHNICAL SPECIFAICATION |
|||||||||
| MODEL | HK-500 | HK-650 | HK-800 | HK-1000 | HK-1500 | HK-2000 | HK-2000B | HK-3000 | |
| Capacity | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | 2000VA/1200W | 3000VA/1800W | |
| INPUT | |||||||||
| Voltage | 110V/120 VAC or 220V/230V/240 VAC | ||||||||
| Voltage range | 81-145VAC or 145-275VAC | ||||||||
| Frequency | 60/50 Hz (Auto sensing) | ||||||||
| OUTPUT | |||||||||
| Voltage | 110V/120 VAC or 220V/230V/240 VAC | ||||||||
| Voltage range | ±10% | ||||||||
| Frequency rang (bat. mode) | 60/50±1 Hz | ||||||||
| Transfer time | 4-6ms | ||||||||
| Waveform(bat. mode) | Simulated sine wave | ||||||||
| BATTERY | |||||||||
| Battery model & Quantity | 12V/4.5Ah×1 | 12V/7.0Ah×1 | 12V/9.0Ah×1 | 12V/7.0Ah×2 | 12V/9.0Ah×2 | 12V/9.0Ah×2 | 12V/7.0Ah×4 | 12V/9.0Ah×4 | |
| Charge time | 8 hours recover to 90% capacity | ||||||||
| PROTECTION | |||||||||
| Full protection | Discharge, Short circuit and overload protection | ||||||||
| INDICATORS | |||||||||
| LCD display | AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload and low battery | ||||||||
| Line mode | Green lighting | ||||||||
| Battery mode | Red lighting | ||||||||
| Battery charge mode | Yellow lighting | ||||||||
| ALARM | |||||||||
| Battery mode | Sounding every 4 seconds | ||||||||
| Low battery | Sounding every seconds | ||||||||
| Overload | Sounding every seconds | ||||||||
| Fault | Continuously sounding | ||||||||
| INTERFACE | |||||||||
| USB/RS232 Port (optional) | Support Windows XP/Vista, windows 7/8, Linux, Unix, and MAC | ||||||||
| ENVIRONMENT | |||||||||
| Humidity | 0-90% RH @ 0-40℃ (Non-condensing) | ||||||||
| Noise level | ＜40 dB | ||||||||
| Dimension(mm) | 280*90*140 | 320*90*140 | 330*100*150 | 365*140*165 | 365*140*165 | 365*140*165 | 395*145*210 | 395*145*210 | |
| N.W. (kg) | 4.0 | 5.2 | 5.7 | 10 | 11.9 | 12.6 | 17 | 21 | |
